GT-008-12064P-DS-S
直驱式多针机

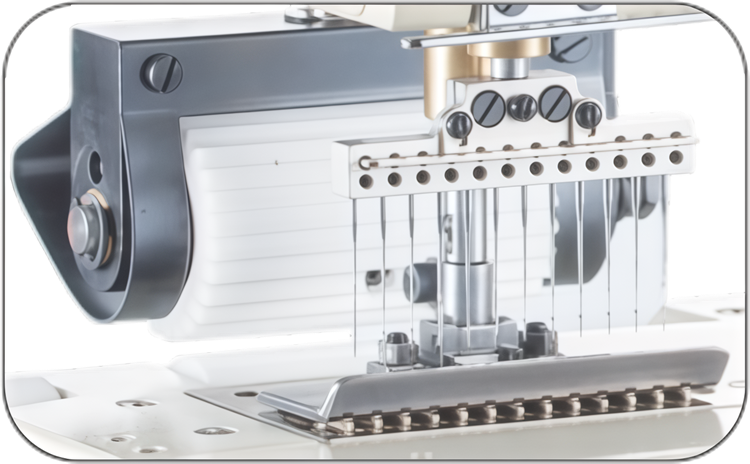

Product advantages

一般车缝,适用于针织品、运动衫、休闲服、女式衬衫、衣裙和床上用品的装饰缝等,可选配不同的花盘,缝出不同的花型图案。完全自动供油,勾针纵向运动,半筒形缝合,利于圆筒形衣服之缝纫,更方便操作; 扣压式针距调整方式,调整简便快速。

General sewing: It is applicable to knitted products, sports wear, casual clothes. Women's shirts, skirts and beddings. User can choose different threads for various patterns. This series can automatically provide machine with oil. It can realize needles' vertical movement and multi-chain sewing. The semicylindrical sewing station can make cylindrical cloth sewing more convenient. With pressing adjustment, the needle space can be adjusted easily and quickly.

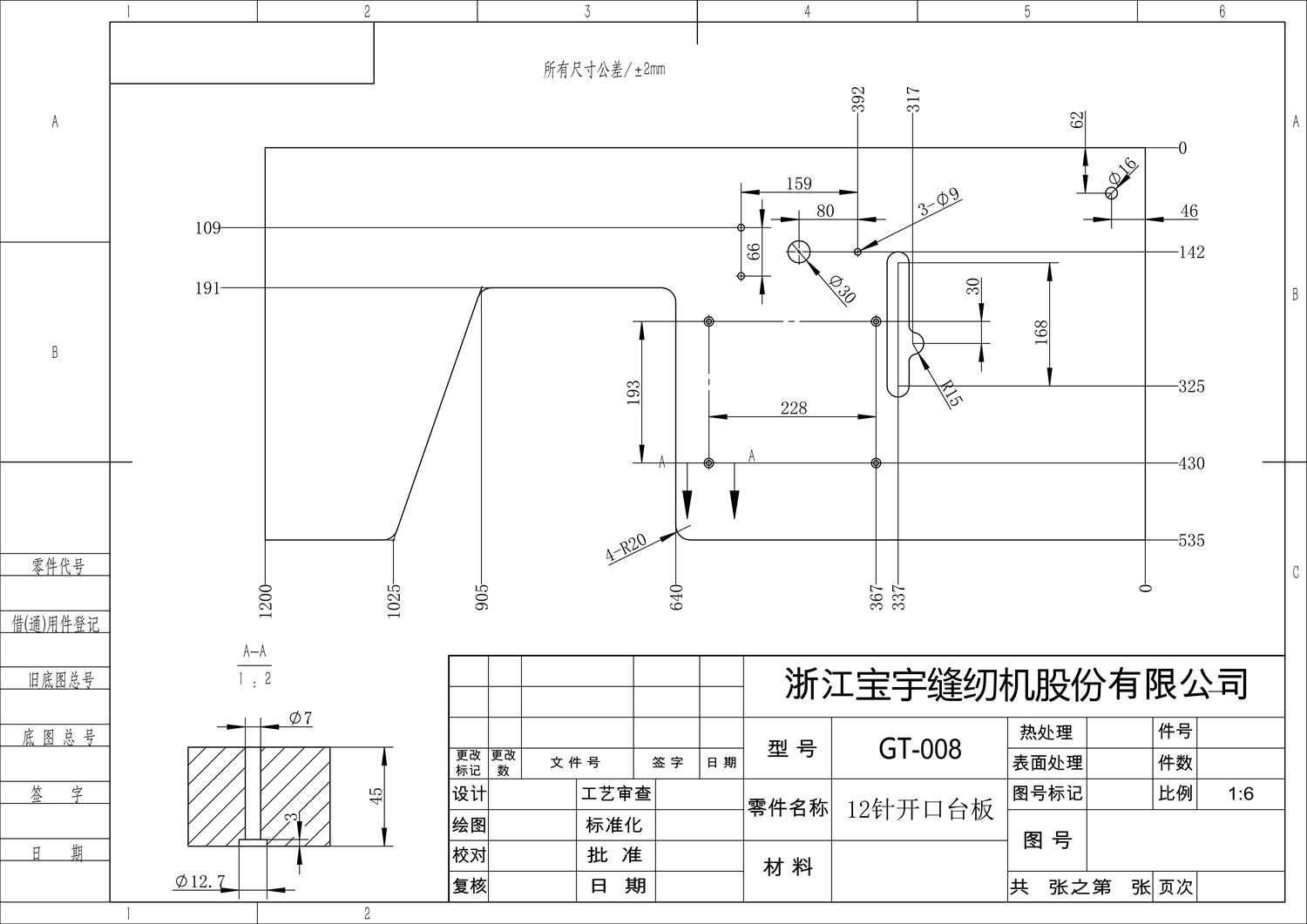

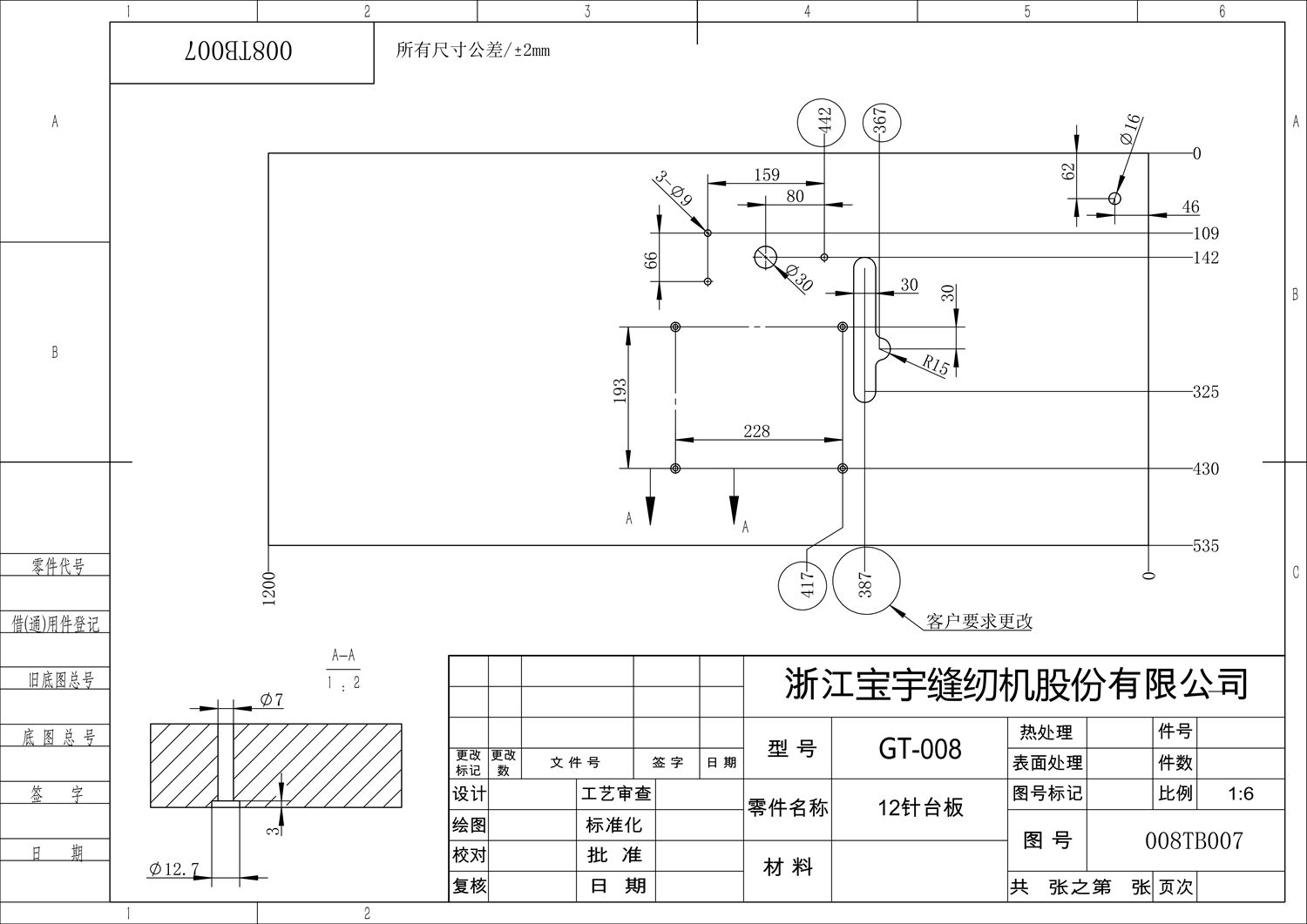

Stage floorboard





Specifications
机型Machine typeGT-008-12064P-AWT-DS/WGT-008-12064P
针数Machine needle1212
机针Machine needleDV x 57DV x 57
抬压脚高度Foot lifter height1212

线数Thread number

2424
针杆行程Needle bar stoke3434
线迹宽度Stitch width3.63.6
最高转速(rp.m) Max speed45004500

包装尺寸Package size

580x250x530580x250x530
毛重/净重Gross/net weight40/2940/29
