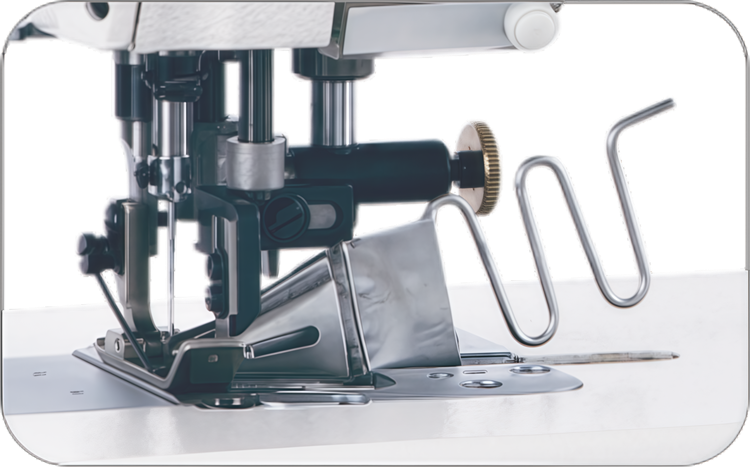

采用内置式直驱伺服马达,实现了机器的快速启动和制动的精确度;大幅度降低了噪音和振动,并降低了能耗,与普通的驱动装置相比,电量耗减35%以上。适用于缝制各类衬衫、西服或类似服装,特别是其衣领、前襟等部位,高速缝制时倒顺送料针距能保持完全一致,侧切刀装置使缝纫和修刀工序一次完成,工作效率提高。

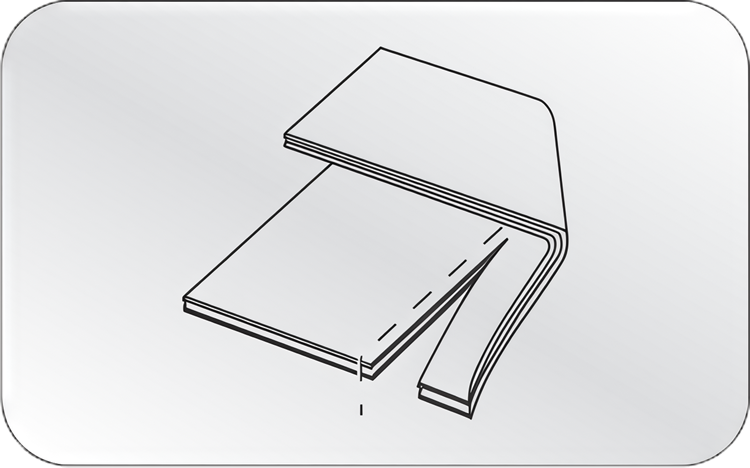

With bult-in direct drive servo motor to achieve the accuracy of the machine's rapid start-up and braking; a significant reduction in noise and vibrationand reduce energy consumption, compared with conventional rive unit, battery depletion of 35% or more, suitable for sewing various shirts, suits olsimilar garments, especialy its colar, breast and other parts,inverted send high-speed sewing material pitch to be completely consistent. side cuterdevice sewing and knife trimming procedures in one time efficiency





| 机型 Machine type | GT2D-CB |
| 机针 Machine needle | DBx1 |
| 抬压脚高度 Foot lifter height | 5.5-13 |
| 线数 Thread number | 1 |
| 针距 Needles distance | 0-5 |
| 针位组 Needle gauges | 1/4,1/8,3/16 |
| 最高转速(rp.m) Max speed | 4500 |
| 包装尺寸 Package size | 630x245x540 |
| 毛重/净重 Gross/net weight | 37/32 |
