适应面广特别适合厚料、大行程、有阻碍物等缝纫工艺，科学的机械结构强大的控制系统。
VersatilityAdaptedldeal for thick materials, large-scale patterns, andobstacle-avoidancesewing processes.Engineered Mechanical Structure ,Robust Control System
设计画笔Design brushes

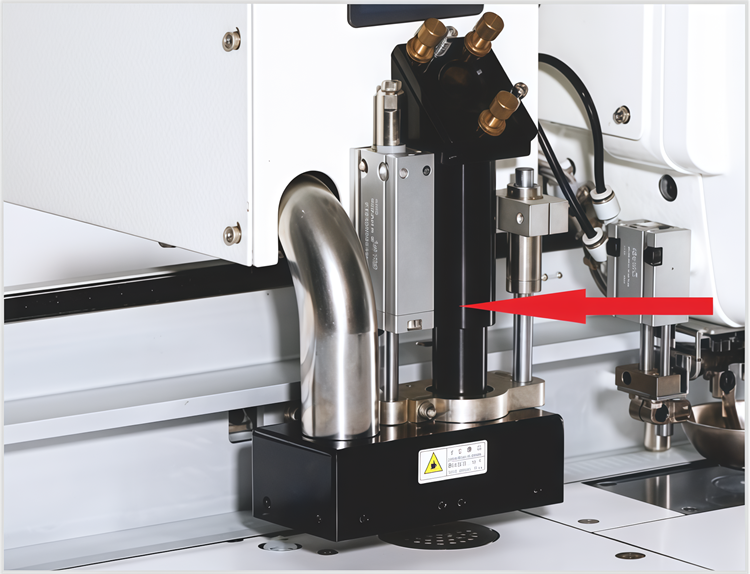

激光切割装置Laser cutting device.

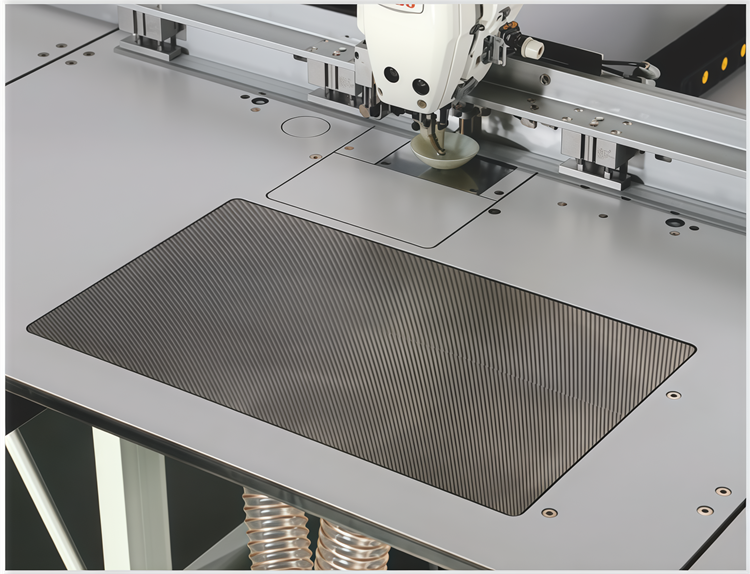

吸风：1500W风机功率，300X500吸风面积，适应各种面料、工艺。
Suction:1500W motor power,300x500mmsuction area,adaptable to variousfabrics and process

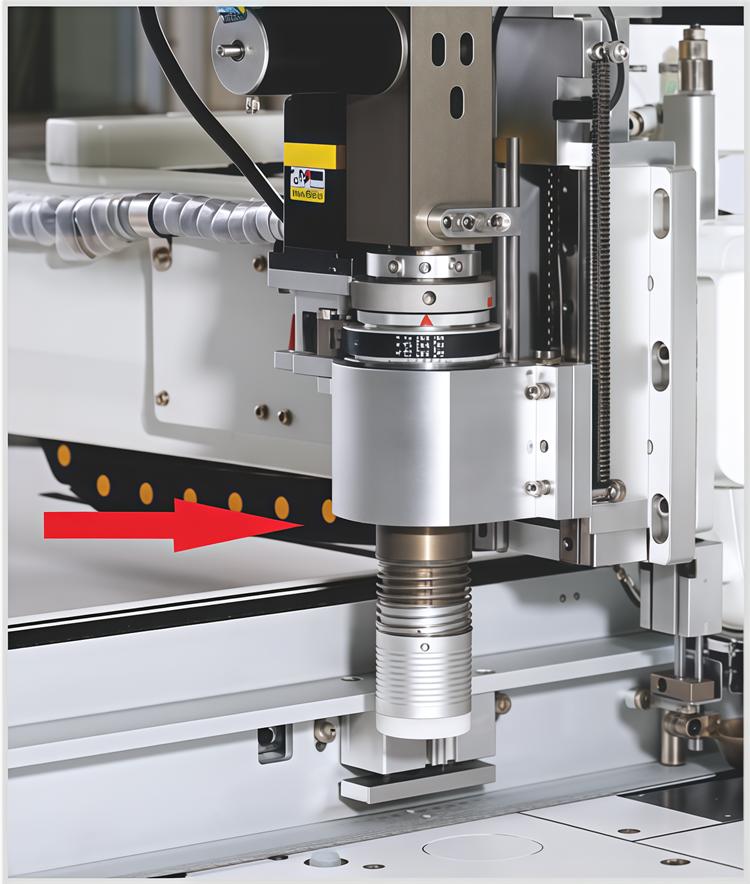

震动刀：适用于不能用激光切割的工艺。
Oscillating Knife: ldealfor applications wherelaser cutting is notsuitable
| 机型Machine type | GT-M45100 | GT-M45120(大豪 dahao) |
缝制范围Sewing Range mm | 450X1000 | 450X1200 |
最高转速Max Speed | 3600 | 3600 |
针距Needle gauge | 0.1-20 | 0.1-20 |
| 机针Machine needle | DPX57-24# | DPX57-24# |
| 旋梭Hook | 1.6倍梭 1.6 times push | 1.6倍梭 1.6 times push |
气压Pressure | 0.4-0.6Mpa | 0.4-0.6Mpa |
| 抬压脚高度Foot liting height | 16 | 16 |
| Y送料方式Y feeding mode | 同步带 Timing belt | 同步带 Timing belt |
| X送料方式X feeding mode | 同步带 Timing belt | 同步带 Timing belt |
| 台板展开尺寸Table open size | 1894X1650 | 1894X2400 |
包装尺寸Package size | 1580X1150X1320 加100W激光长1960 加130W激光长2340 With 100W laser, length: 1960mm With 130W laser, length: 2340mm | 1580X1150X1320 加100W激光长1960 加130W激光长2340 With 100W laser, length: 1960mm With 130W laser, length: 2340mm |
毛重/净重Gross/net weight | 240 | 270 |
