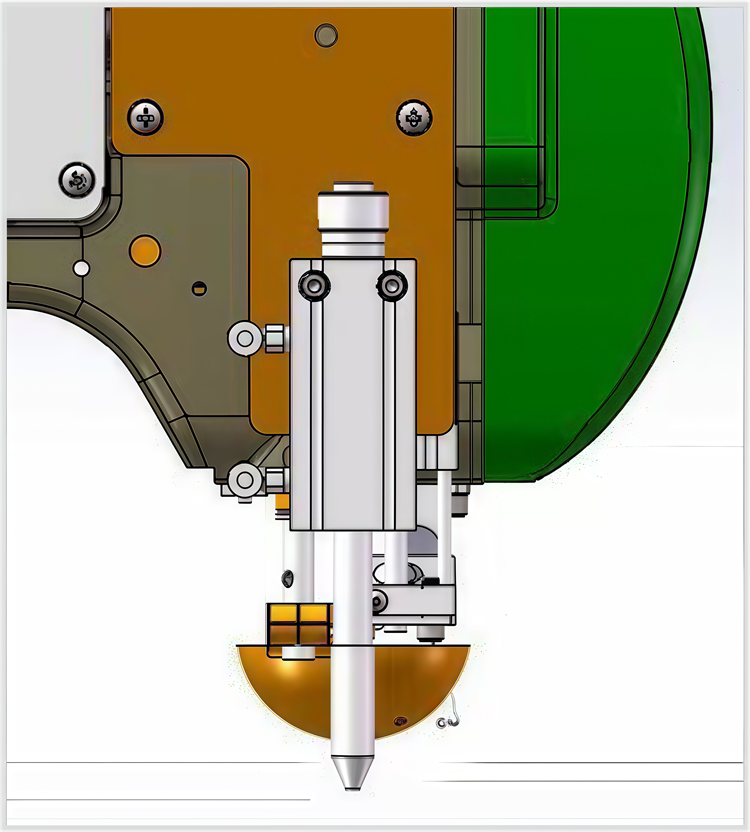

正向线迹，代替旋转头Forward Stitch, Replacing Rotary Head

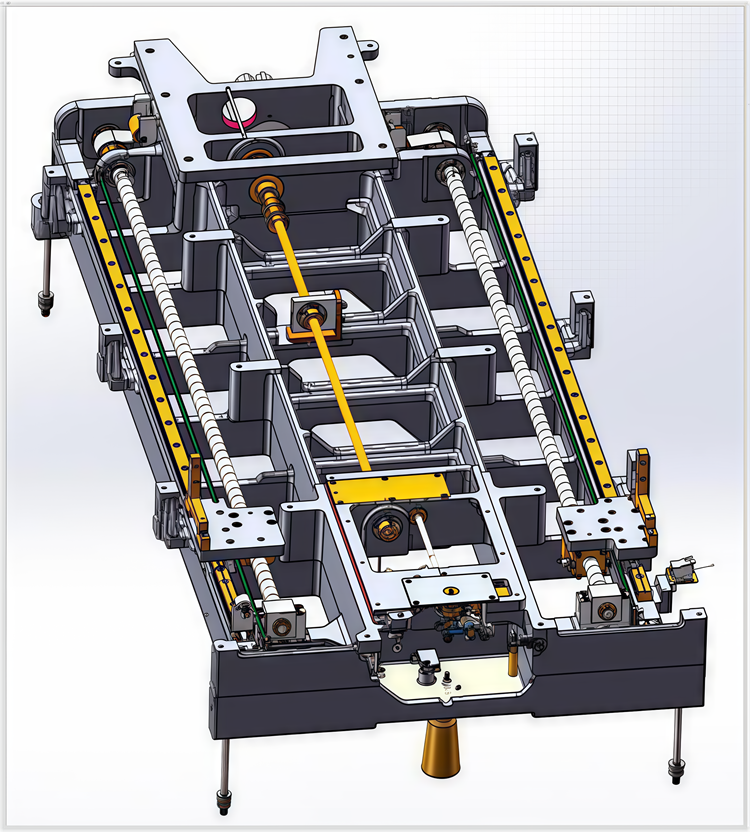

Y向双丝杆传动Ydirection double screw drive
设计画笔Design brushes

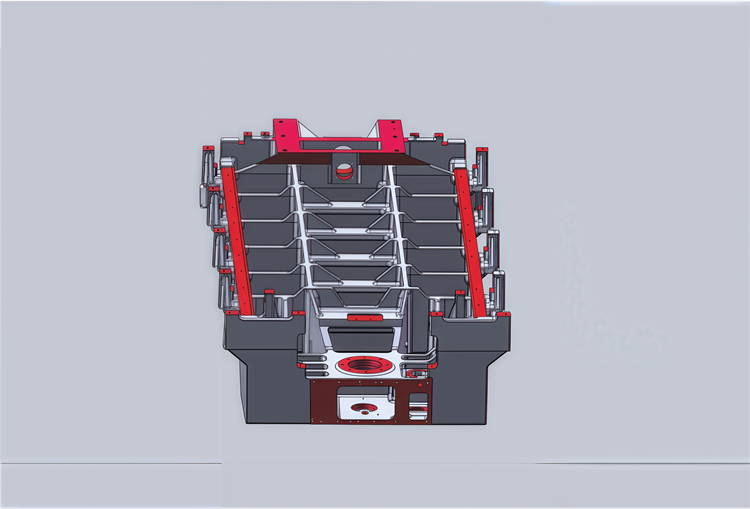

一体铸造大底座Integrated casting large base

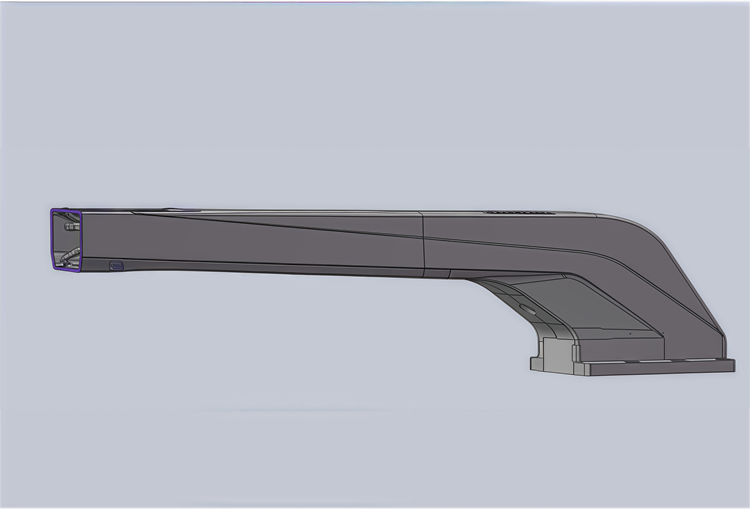

一体铸造机臂Integrated casting machine arm
| 机型Machine type | GT-K10W-105130 | GT-K10W-105150 | GT-K10W-105160 | GT-K10W-105180 | GT-K10W-105200 | GT-K10W-105400 |
| 缝制范围Sewing Range mm | 900X1300 | 900X1500 | 900X1600 | 900X1800 | 900X2000 | 900X2400 |
| 最高转速Max Speed | 3600 | 3600 | 3600 | 3600 | 3600 | 3600 |
| 针距Needle gauge | 0.1-20 | 0.1-20 | 0.1-20 | 0.1-20 | 0.1-20 | 0.1-20 |
| 机针Machine needle | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# |
| 旋梭Hook | 2倍梭 2 times push | 2倍梭 2 times push | 2倍梭 2 times push | 2倍梭 2 times push | 2倍梭 2 times push | 2倍梭 2 times push |
| 气压Pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
| 抬压脚高度Foot liting height | 20 | 20 | 20 | 20 | 20 | 20 |
| Y送料方式Y feeding mode | 双丝杆 Dual lead screws | 双丝杆 Dual lead screws | 双丝杆 Dual lead screws | 双丝杆 Dual lead screws | 双丝杆 Dual lead screws | 双丝杆 Dual lead screws |
| X送料方式X feeding mode | 丝杆、同步带 Lead Screw、Timing Belt | 丝杆、同步带 Lead Screw、Timing Belt | 丝杆、同步带 Lead Screw、Timing Belt | 丝杆、同步带 Lead Screw、Timing Belt | 丝杆、同步带 Lead Screw、Timing Belt | 丝杆、同步带 Lead Screw、Timing Belt |
| 台板展开尺寸Table open size | 2500X2200 | 2500X3200 | 2500X3700 | 2500X3700 | 2500X4100 | 2500X4800 |
| 包装尺寸Package size | 1960X1150X1740加130W激光长2120 With 130W laser, length: 2120mm | 1960X1150X1740加130W激光长2120 With 130W laser, length: 2120mm | 1960X1150X1740加130W激光长2120 With 130W laser, length: 2120mm | 1960X1150X1740加130W激光长2120 With 130W laser, length: 2120mm | 1960X1150X1740加130W激光长2120 With 130W laser, length: 2120mm | 1960X1150X1740加130W激光长2120 With 130W laser, length: 2120mm |
| 毛重/净重Gross/net weight | 550 | 571 | 577 | 594 | 619 | 649 |
