正向线迹，代替旋转头。采用控线精灵系统，精准捕捉面料的多维特性，毫秒级动态校准制参数，自动生成最优针距、线张力及走针轨迹，有效解决逆缝方向线迹各种问题。无鸟巢装置，解决您剪线烦恼。效率提升35%每年节省20000元。

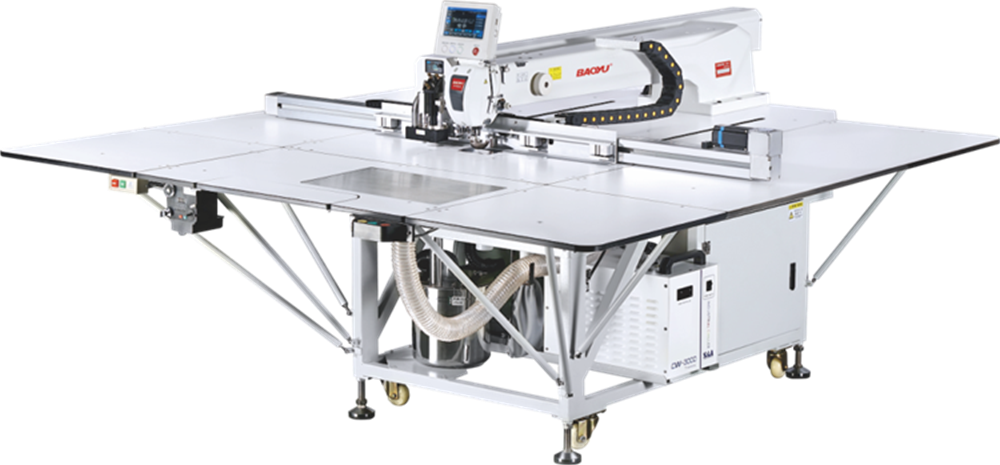

Forward Stitch Template Machine: Replaces rotating heads.Thread Control Wizard System preciselycaptures multi-dimensional fabric properties; performs milisecond-level dynamic calibration ofstitching parameters; automatically generates optimal stitch length, thread tension, and needle feedpath.Effectively resolves all types of reverse stitching direction thread issues.
吸风：1500W风机功率，300X500吸风面积适应各种面料、工艺。
Suction:1500W motor power,300x500mm suction area.adaptable to various fabrics and processes
震动刀：适用于不能用激光切割的工艺。
Oscillating Knife: Suitable for processes wherelaser cutting cannot be applied.
激光：130W加大激光功率，切割速度更快，切缝更细。
Laser:130W enhanced laser power for faster cuttingspeed and finer kerf

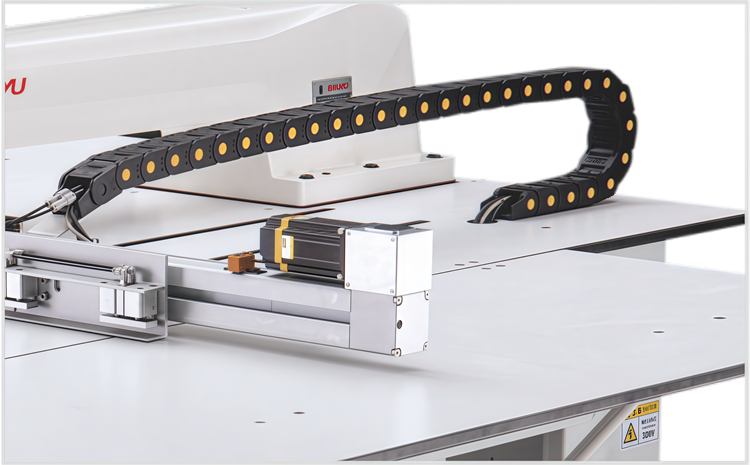

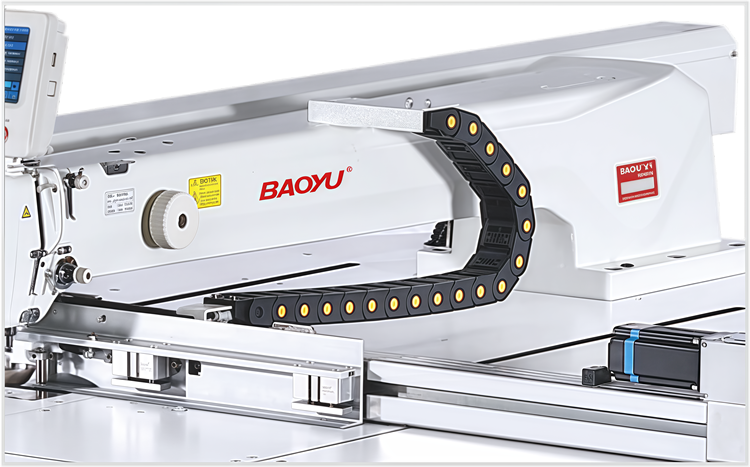

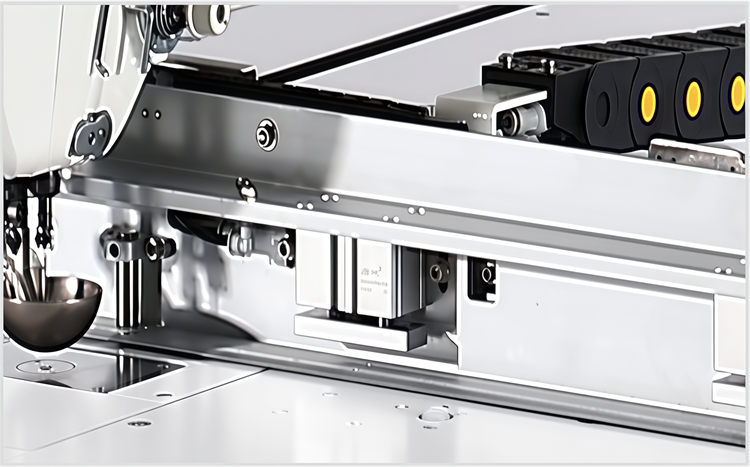

拖链：内展式拖链，不占用台板外空间，提高场地利用效率和人员安全性。
Drag Chain:Internal expansiondesign, freeing up external tablespace.Enhances workspaceefficiency and operator safety.

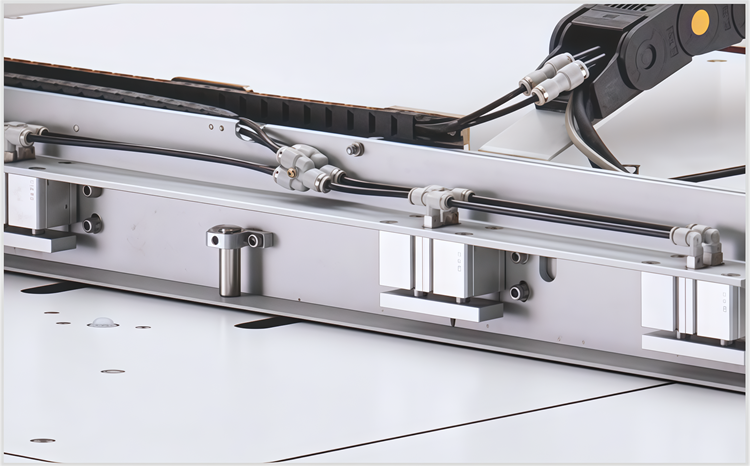

F板：隐藏式气路设计，降低漏气风险提高美观度
F-Platen:Concealed pneumaticcircuit design, reduces airleakage risks and improves

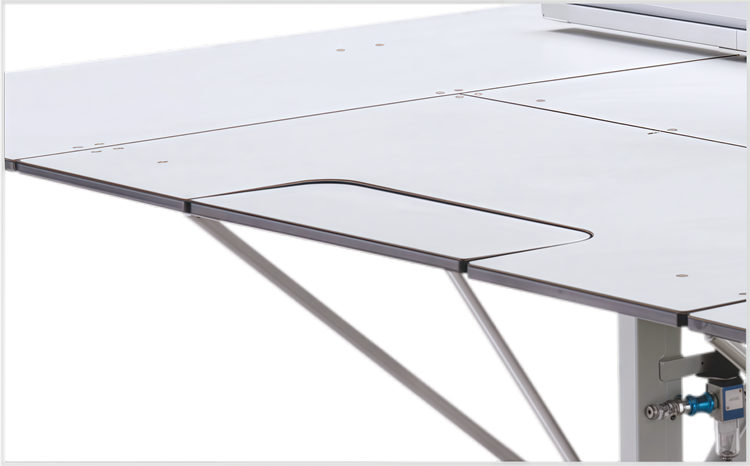

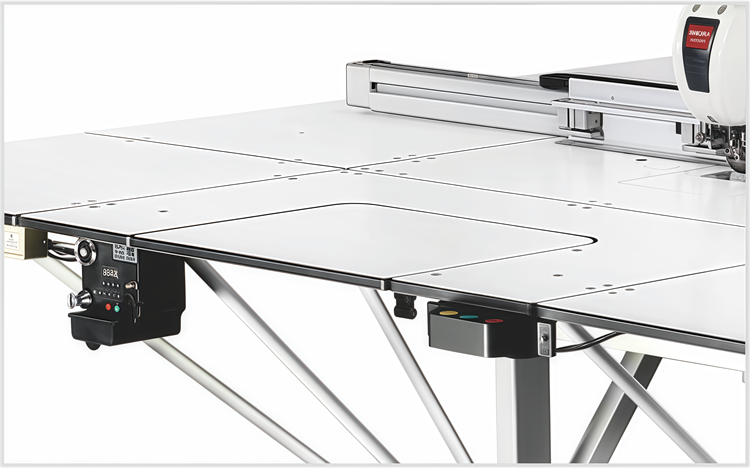

推拉翻板：提高人员操作舒适性，降低疲劳。
Flip & Slide Plate:Ergonomic operation, reducesoperator fatigue.

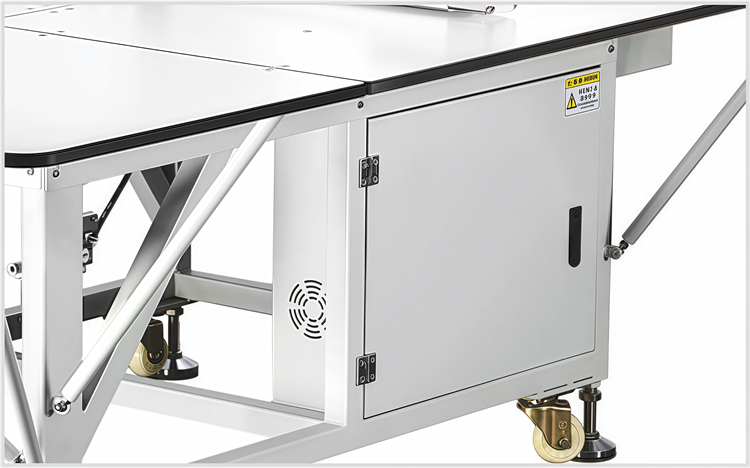

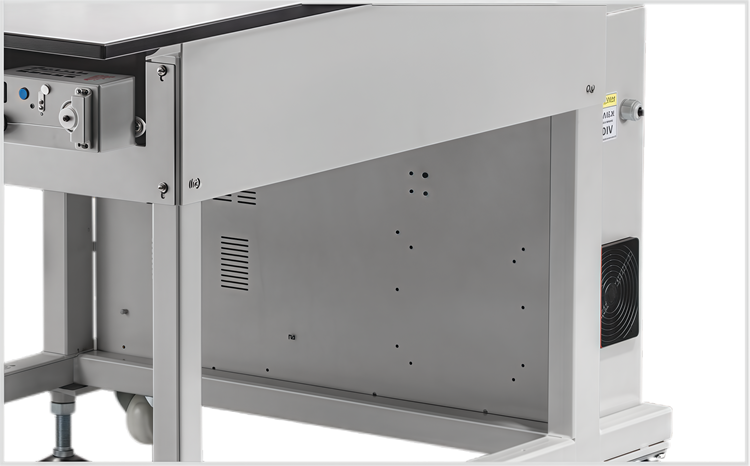

侧放电控：方便售后维护、提高效率
Side-Mounted Electronic Control:Facilitates after-salesmaintenance and improvesoperational efficiency.
| 机型Machine type | GT-K9W-95130 | GT-K9W-95150 | GT-K9W-95160 | GT-K9W-95180 | GT-K9W-95200 | GT-K9W-95400 |
| 缝制范围Sewing Range mm | 890X1300 | 890X1500 | 890X1600 | 890X1800 | 890X2000 | 890X2400 |
| 最高转速Max Speed | 3600 | 3600 | 3600 | 3600 | 3600 | 3600 |
| 针距Needle gauge | 0.1-20 | 0.1-20 | 0.1-20 | 0.1-20 | 0.1-20 | 0.1-20 |
| 机针Machine needle | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# |
| 旋梭Hook | 2倍梭 2 times push | 2倍梭 2 times push | 2倍梭 2 times push | 2倍梭 2 times push | 2倍梭 2 times push | 2倍梭 2 times push |
| 气压Pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
| 抬压脚高度Foot liting height | 20 | 20 | 20 | 20 | 20 | 20 |
| Y送料方式Y feeding mode | 同步带 Timing Belt | 同步带 Timing Belt | 同步带 Timing Belt | 同步带 Timing Belt | 同步带 Timing Belt | 同步带 Timing Belt |
| X送料方式X feeding mode | 同步带 Timing Belt | 同步带 Timing Belt | 同步带 Timing Belt | 同步带 Timing Belt | 同步带 Timing Belt | 同步带 Timing Belt |
| 台板展开尺寸Table open size | 2300X2200 | 2300X3200 | 2300X3700 | 2300X3700 | 2300X4100 | 2300X4800 |
| 包装尺寸Package size | 1820X1150X1740加130W激光长2120 With 130W laser, length: 2120mm | 1820X1150X1740加130W激光长2120 With 130W laser, length: 2120mm | 1820X1150X1740加130W激光长2120 With 130W laser, length: 2120mm | 1820X1150X1740加130W激光长2120 With 130W laser, length: 2120mm | 1820X1150X1740加130W激光长2120 With 130W laser, length: 2120mm | 1820X1150X1740加130W激光长2120 With 130W laser, length: 2120mm |
| 毛重/净重Gross/net weight | 471 | 492 | 498 | 515 | 540 | 570 |
